Video graphics · style guide v1 · Oct 2026

Data cards that look
engineered, not loud.

For the Fuse X1 vs Jet Fusion 5600 video, and every comparison video after it. Each card from the current cut is redrawn below next to the original, then the full system: type, color, spacing, motion, and a prompt you can paste straight into your AI tool.

VISIONMINER.COM

What's holding the current cards back

Six fixes cover almost all of it

Everything is red, so nothing is

Every number is the same bright red at the same size. The viewer can't tell which figure is the point. Red should land on one value per row, the one Rob is talking about.

Pink canvas with a floating card

The off-white background, big drop shadow and 40px corners read as a template. Go full-frame dark. If a panel is ever needed, 16px corners max and no pinkish ground.

Centered titles, scattered content

Titles float in the middle while the table hugs the left, so there's no edge to read from. Everything aligns to one left margin at 96px.

Huge gaps between rows and bullets

Rows sit 200px+ apart with nothing tying them together. Tighten to a fixed rhythm and use thin dividers so each row reads as a unit.

No type hierarchy

Titles, labels and numbers are all heavy bold caps. Labels should be quiet (Book weight, 65% white), units smaller than the number, notes small and gray.

Logo bug gets eaten

On dark slides it sits behind the card; on white slides only "MINER" shows. The bug lives on its own top layer and switches to the black version on light frames.

Before / after

Every card from this cut, redrawn

Drawn at true 1920×1080 proportions. Mockups render in the brand fonts, Gotham and Bebas Neue Pro — the same files used for final renders.

Now

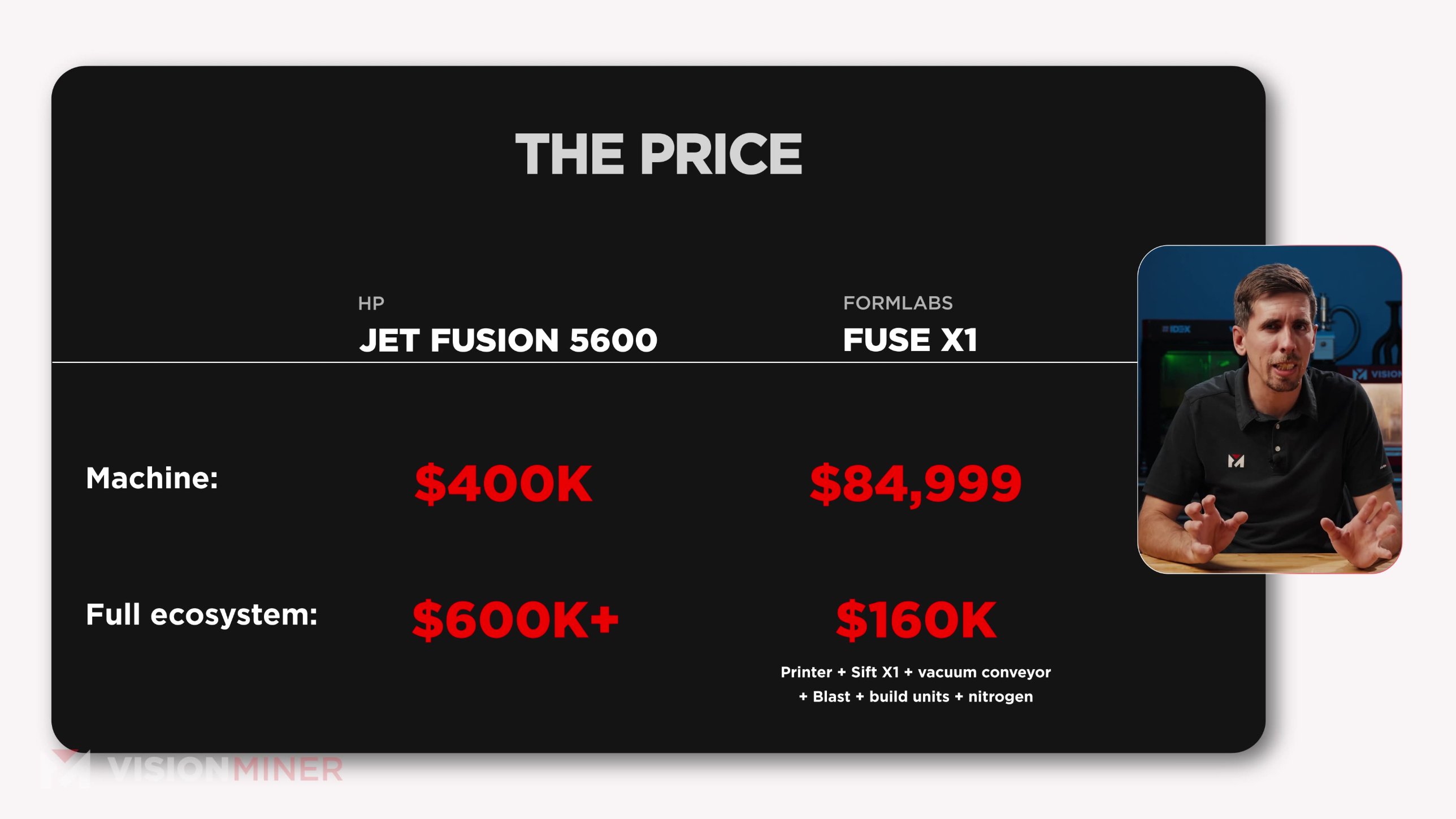

Current price card: centered title, all-red numbers on a black card over a pink background

Two-column comparison · The Price

Cost of entry

The price

Jet Fusion 5600

Formlabs

Fuse X1

Machine

$400K

$85K

List $84,999

Full ecosystem

$600K+

$160K

Printer, Sift X1, vacuum conveyor, Blast, build units, nitrogen

VISIONMINER.COM

Red marks the Fuse X1 column only. HP values sit in neutral light gray.
Rounding matches across columns: $400K next to $85K, full list price drops into the note.
The equipment list moves out of the headline into a small gray note.

Now

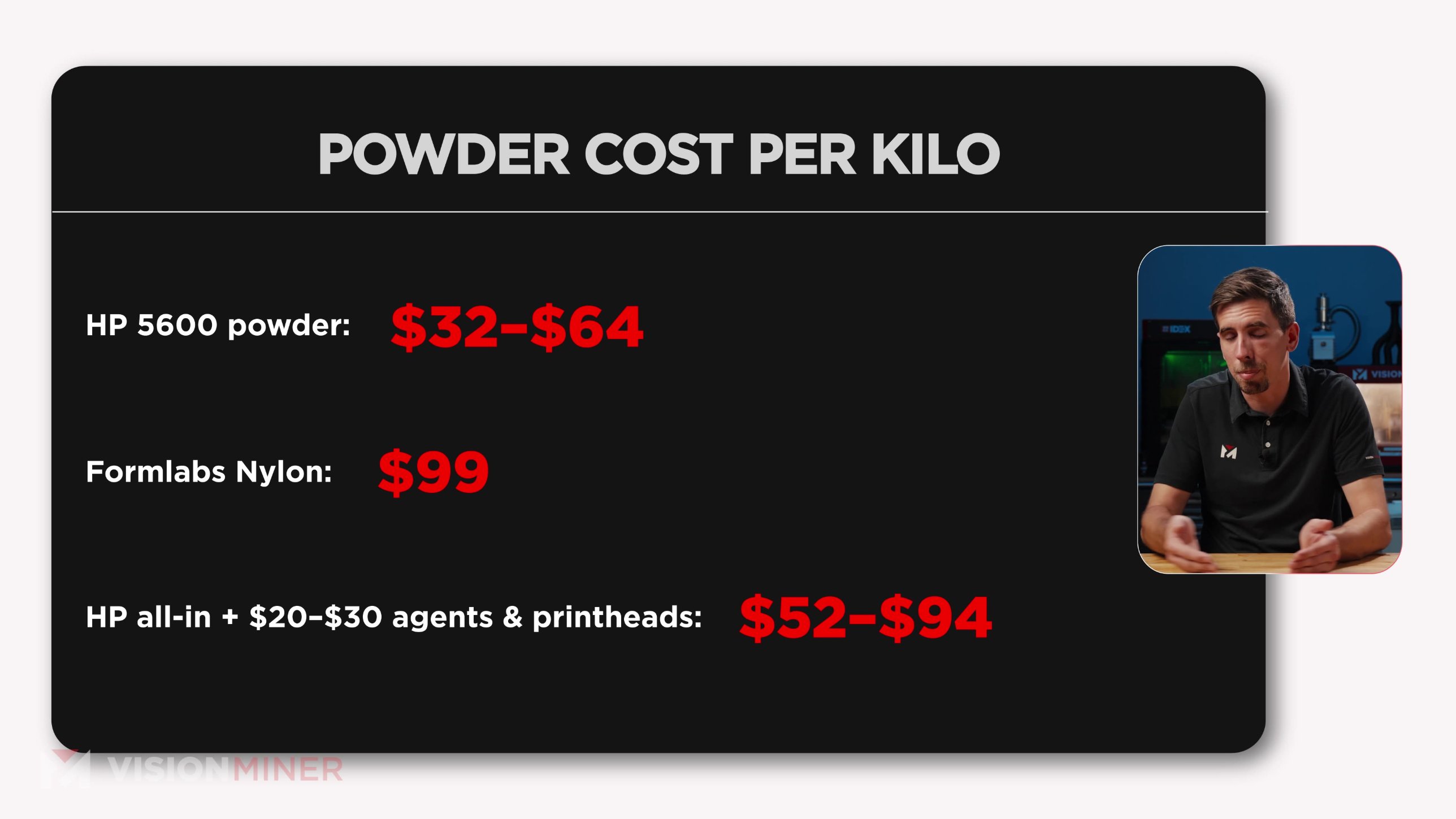

Current powder cost card: three rows with red numbers at different horizontal positions

Ranges to scale · Powder cost per kg

Running cost

Powder cost per kg

HP 5600 powder

$32–64

HP all-in+ $20–30 agents & printheads

$52–94

Formlabs Nylon

$99

$0$25$50$75$100

VISIONMINER.COM

Every value lines up in one right-aligned column instead of floating after its label.
The bars are to scale on a $0–100 axis, so the viewer sees HP all-in close the gap on Formlabs.
Long label splits into a label plus a small qualifier line.

Now

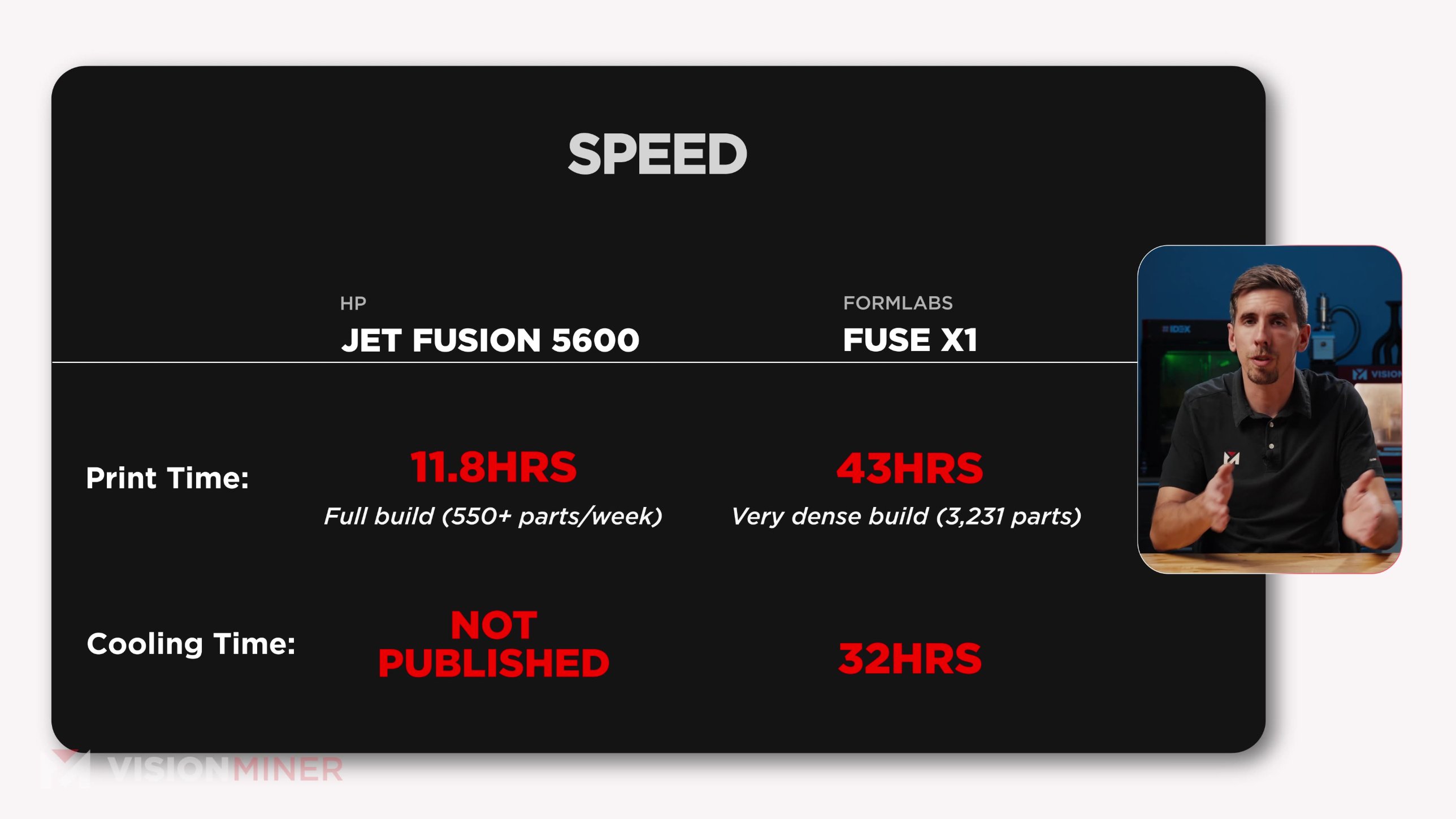

Current speed card with NOT PUBLISHED in large red caps

Two-column comparison · Speed

Time per build

Speed

Jet Fusion 5600

Formlabs

Fuse X1

Print time

11.8hrs

Full build

43hrs

Dense build, 3,231 parts

Cooling time

Not published

32hrs

VISIONMINER.COM

Units drop to 42% size with a space: "43 hrs", never "43HRS".
"Not published" is an absence, so it gets quiet gray text, not the loudest thing on screen.

Now

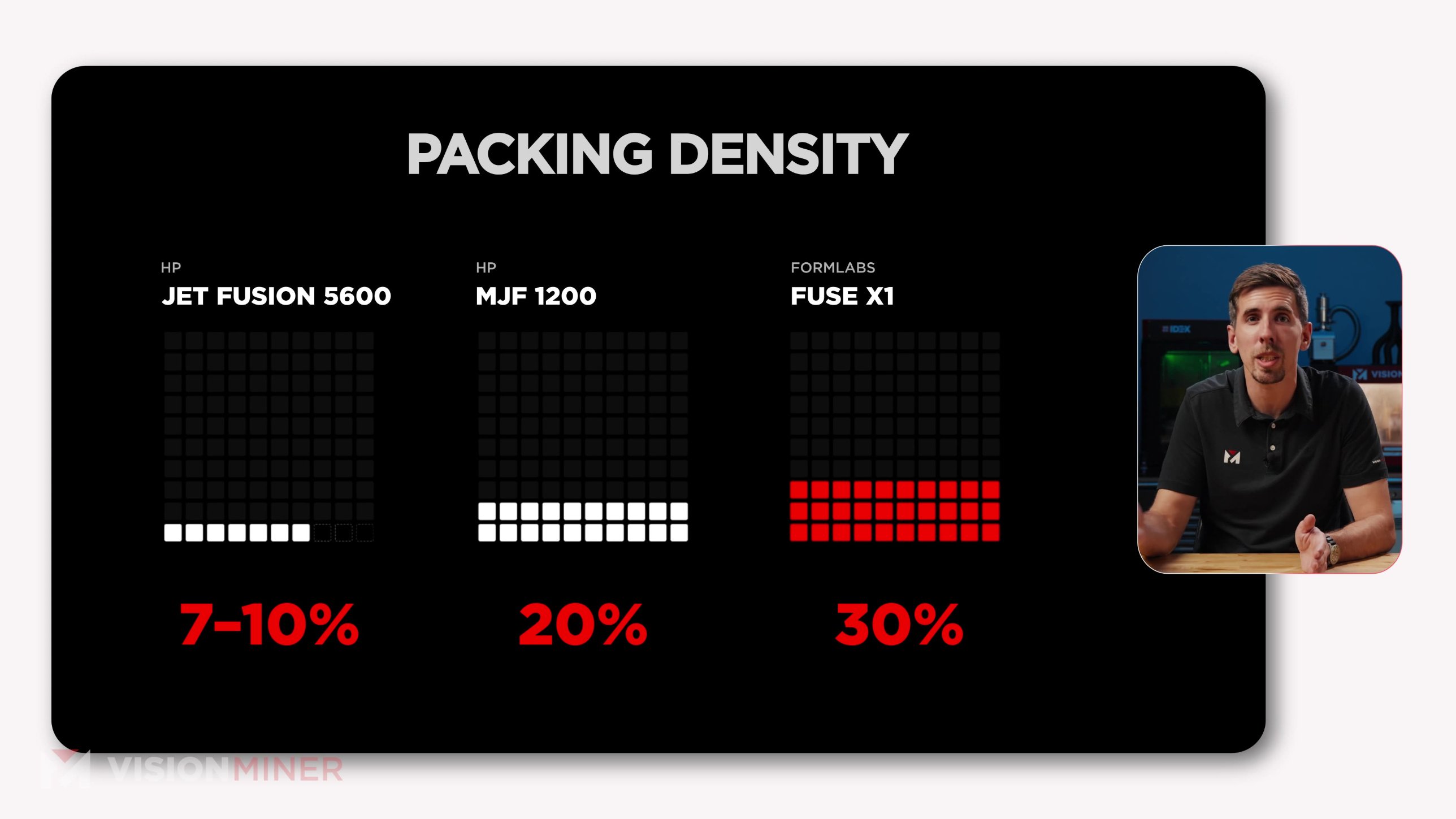

Current packing density card with three square grids

Proportion grids · Packing density

Parts per build

Packing density

VISIONMINER.COM

The 7–10% range shows as 7 solid cells plus 3 outlined, so the grid tells the truth about the range.
Grids, headers and percentages share one left edge per column.

Now

Current build volume card with two red liter values

Shapes to scale · Build volume

Front view, to scale

Build volume

380 mm380

HP Jet Fusion 5600

41L

380 × 284 × 380 mm
15 × 11 × 15 in

330 mm565

Formlabs Fuse X1

61.5L

330 × 330 × 565 mm
13 × 13 × 22 in

VISIONMINER.COM

Chambers drawn to the same mm scale. The tall Fuse chamber is the story, so show it.
Drop the dark pill tags behind model names; the brand/model stack does that job.

Now

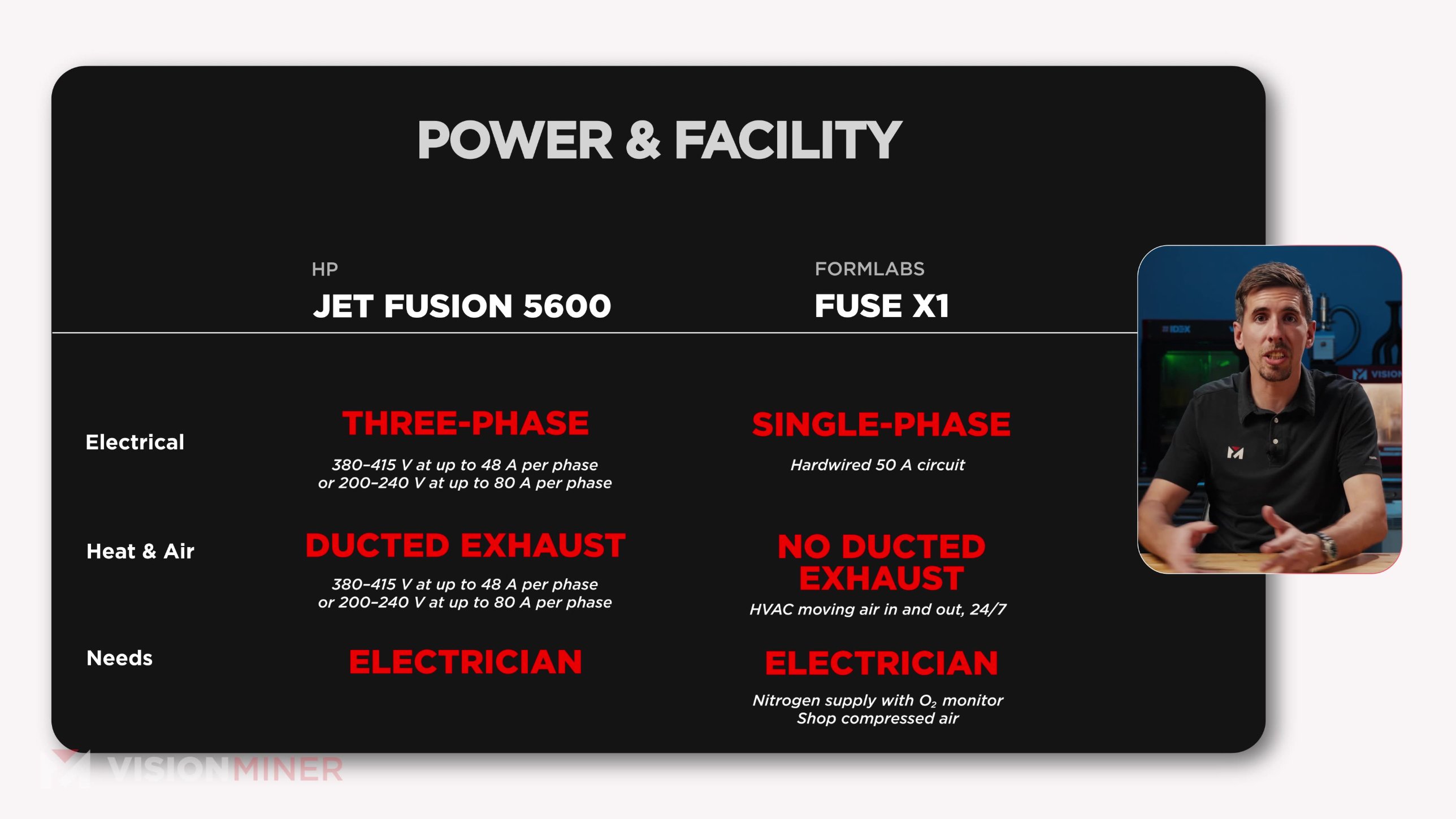

Current power and facility card with six red headlines

Spec table · Power & facility

What your shop needs

Power & facility

Jet Fusion 5600

Formlabs

Fuse X1

Electrical

Three-phase

380–415 V up to 48 A per phase, or 200–240 V up to 80 A

Single-phase

Hardwired 50 A circuit

Exhaust

Ducted

Spec needed

None ducted

Room HVAC moving air 24/7

Also needs

Electrician

Nitrogen supply with O₂ monitor, shop compressed air

VISIONMINER.COM

Words-as-values run at 42px, not 76px. Six shouting red headlines become a calm spec sheet.
When both sides match ("Electrician"), neither gets red.

Now

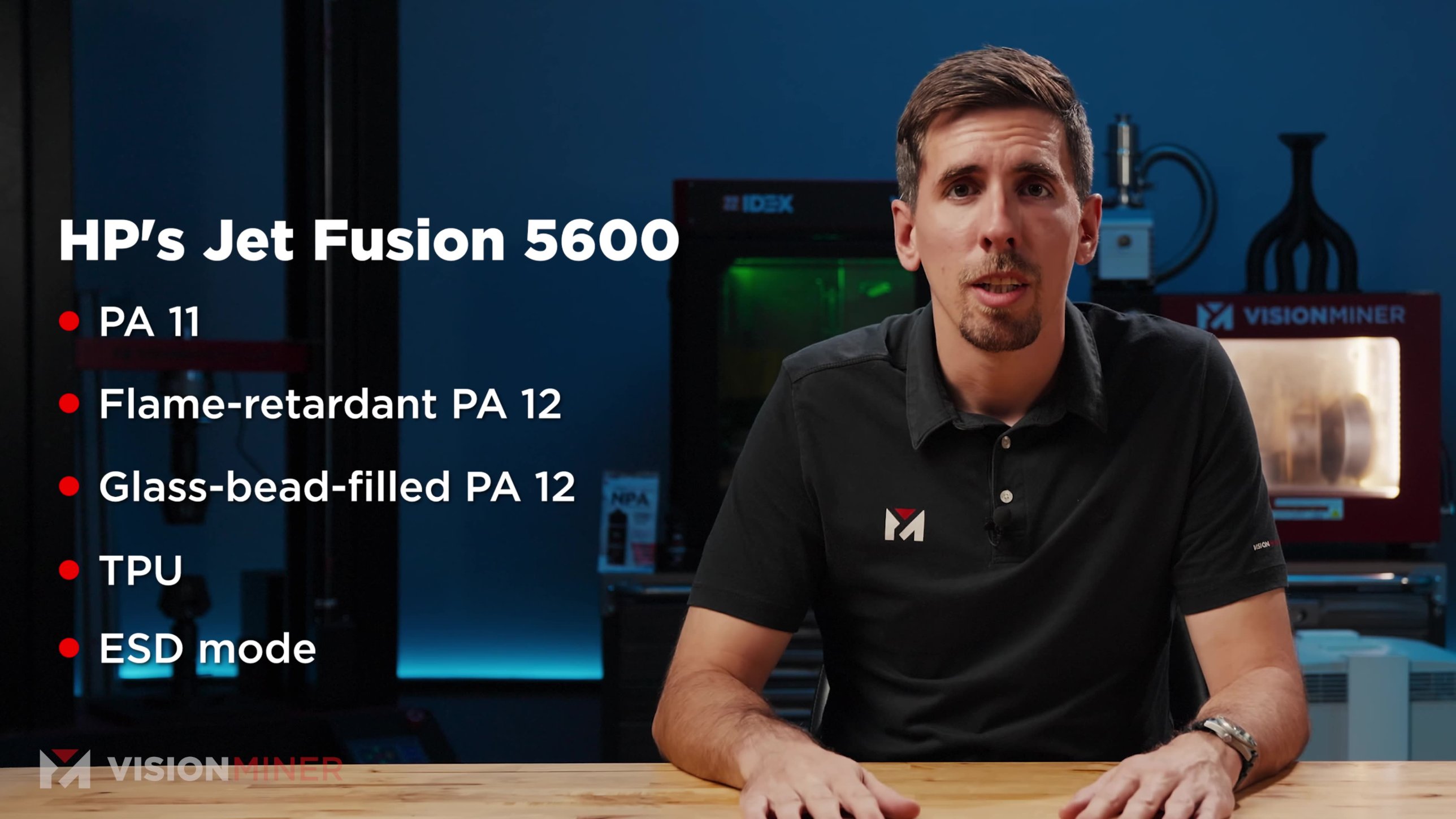

Current bullet list over the talking head with large red dots and wide spacing

List over A-roll · Materials

Supported materials

HP Jet Fusion 5600

PA 11
Flame-retardant PA 12
Glass-bead-filled PA 12
TPU
ESD mode

VISIONMINER.COM

A soft dark scrim on the left third replaces per-letter drop shadows.
Red dots go. Hairline dividers and 16px row padding hold the list together.
Live render: blur only the background plate, never Rob. Mockup blurs the old baked-in text.

Now

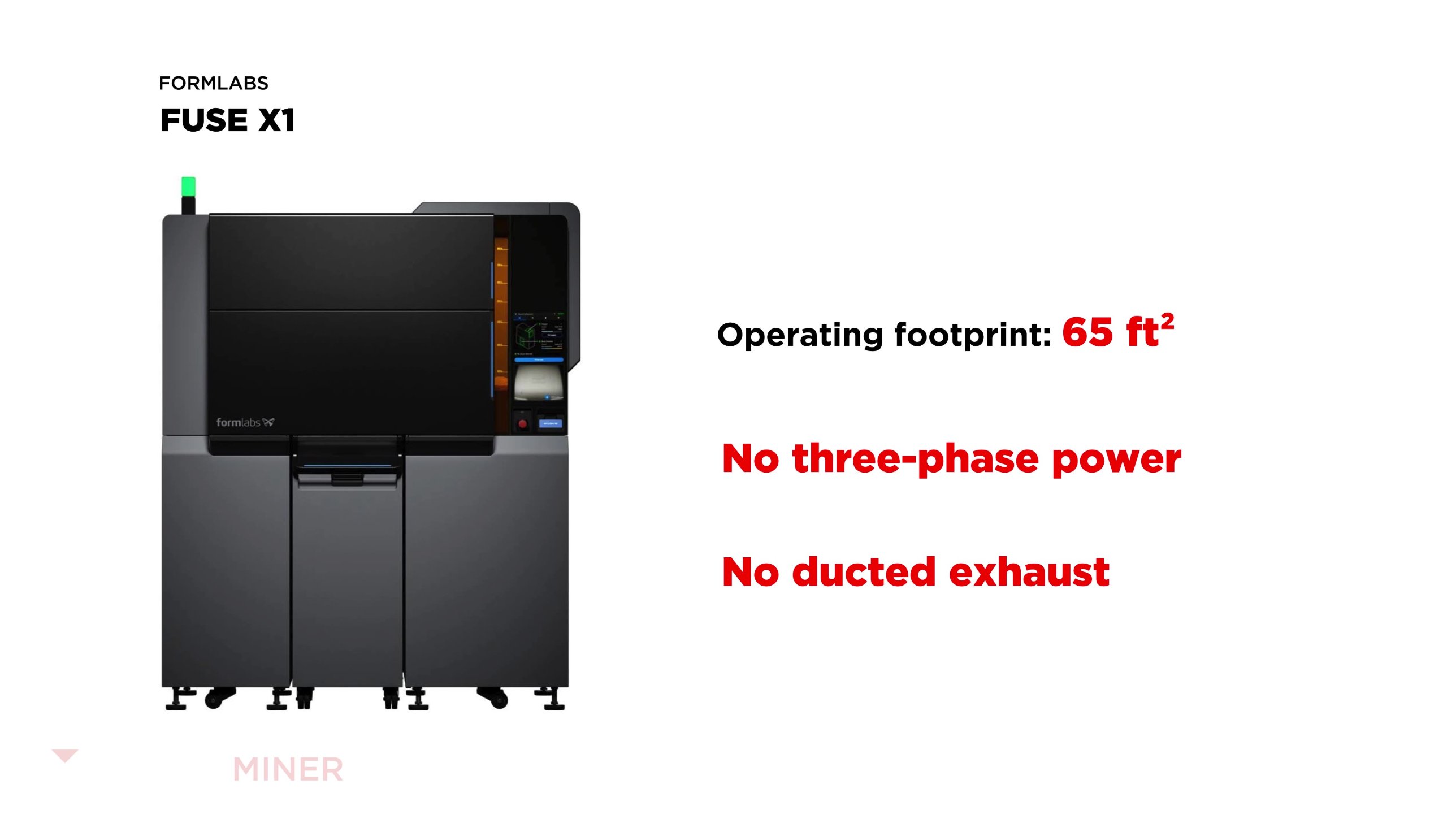

Current Fuse X1 product card with red negative statements

Product on white · Fuse X1

Formlabs

Fuse X1

Operating footprint: 65 ft²
Power: Single-phase
Exhaust: No ducting

VISIONMINER.COM

"No three-phase power" becomes Power: Single-phase. State what it is, not what it isn't.
Same label/value rows as the dark cards, so the system carries across light and dark.
Logo bug switches to the black-VISION version on white.

The system

Specs at 1920 × 1080

Scale proportionally for 4K (×2). Every value below is in pixels at 1080p.

Role	Font	Size	Color	Notes
Eyebrow	Gotham Medium, caps	22	VM Red #FF2800	Tracking +220, line-height 1.7. Two to four words. Sits 6px above the title.
Title	Bebas Neue Pro Bold	104	White #F2F2F2	Left-aligned at x 96, top 88. Never centered. 96 on list slides, 128 on product slides.
Column brand	Gotham Medium, caps	18	White 46%	Tracking +200. HP / FORMLABS.
Column model	Gotham Bold	34	White	Jet Fusion 5600, Fuse X1. Title case, not caps.
Row label	Gotham Book	26	White 66%	No colons. Sentence case.
Hero number	Gotham Bold, tabular figures	76	Gray #D6D7D9 or Red	Units at 42% size, Medium weight, one space before.
Word value	Gotham Bold	42	Gray or Red	For values that are words (Three-phase, Electrician).
Note	Gotham Book	20	White 46%	Max two lines, max 430px wide. 12px below the value.
Bullet	Gotham Medium	40	White	Line-height 1.25, 16px top/bottom padding, 1.5px divider at 14% white.
Logo bug	Horizontal URL lockup	24 tall	VISION white/black, MINER.COM red	x 96, 64 from bottom. Top layer, 100% opacity, never behind a panel.

Color

Frame ground#141517

Primary text#F2F2F2

Neutral data#D6D7D9

VM Red#FF2800

HairlineWhite 12%

Blue, glow only#263F65 @ 22%

Red marks the subject, one value per row. In this video that's always the Fuse X1 column, win or lose. Engineers trust a card that shows the loss too.
Matching values get no red. If both sides say Electrician, both are gray.
Never red for absences like "Not published". Those go 46% white.
No pink. Drop the #F8F3F4 background entirely, and no light gradients on red.
Current red reads like #E8000A. Use the brand value #FF2800 exactly.

Layout & grid

Full-frame dark, no floating card. Optional 96px grid at 2.5% white and a faint blue glow top-left give depth without a box.
Margins: 96px left, right and top; 64px bottom to the logo baseline.
Content column runs x 96 to x 1336 when the PiP is up, full 1728 wide when it isn't.
Table grid: 300px label column, then equal value columns. Row padding 30px top and bottom, 1.5px hairline between rows.
Max three data rows per card. A fourth row means a second card.
Charts to scale. Bars on a labeled axis, volumes at the same mm scale, grids at 10×10.

PiP & corners

PiP: 420 × 525, right 96, vertically centered (top 278). Corner radius 16.
Stroke: 1.5px white at 14%. No red outline.
Shadow: 0 24 60 black 45%. Soft and low, just enough to lift it.
Any panel or card: 16px radius max. Current cards run about 40px, which is what reads as a template.
Product shots on white: pure #FFFFFF ground so the cutout disappears, product left, specs right.

Numbers & copy

Same rounding across a row. $400K vs $85K, or $400,000 vs $84,999. Never mixed.
Units: hrs, L, kg, ft², mm. Lowercase, space before, smaller than the number.
En dash for ranges: $32–64, not $32-$64.
Say what it is: "Single-phase", not "No three-phase power".
Labels are 1–3 words. Anything longer splits into label + note.
Spell real names: Jet Fusion 5600, Fuse X1, PA 12, O₂.

Motion

How every card builds

Every card above plays its build when you scroll to it, and the Replay button plays it again. Rows are spaced out here so you can follow the order; in the edit, each row waits for Rob to start talking about it.

Rob's window slides in from the right and settles. It stays put for the whole comparison section and doesn't re-animate between cards.
The small red label fades up, and the big title follows a split second behind. Both rise a few pixels as they appear.
The column names appear, left one first.
Each row arrives when Rob starts talking about it. The divider line draws across left to right, then the row label, then the HP number, then the Fuse X1 number in red. Red always lands last because it's the payoff.
Numbers roll up quickly to their final value, done in about half a second, and land before Rob says the number out loud.
Charts build the way the thing they show would: bars grow out from zero, grid squares fill from the bottom up, chamber boxes rise from the floor.
When Rob moves on, the whole card fades out together. Or just cut on the edit. Never take it apart piece by piece.

The feel

Quick start, soft landing. Things move fast at first and ease into place.
Calm and precise, like a spec sheet loading. Confident, not flashy.
Small moves. Text rises about 14px, Rob's window slides about 28px.

Leave these out

Bounce, overshoot, elastic or springy settling
Zooms, spins, flips, 3D tumbles
Typewriter, letter-by-letter, glitch or scramble text
Motion blur trails, light sweeps, lens flares

Timing

Each element takes under half a second to arrive.
Everything holds at least 2 seconds after the last piece lands.
If Rob says it, it should be on screen by the time he finishes the word.

Exact timings for After Effects

Element	Move	Duration	Start	Notes
Easing	Ease-out, cubic-bezier(0.2, 0.7, 0.2, 1)	—	—	After Effects: Easy Ease Out, outgoing influence ~80%.
PiP	Fade + slide 28px from right	450 ms	0	Stays put across consecutive cards. Don't re-animate it between cards.
Eyebrow	Fade + rise 14px	420 ms	0
Title	Fade + rise 14px	420 ms	+80 ms	No per-letter typewriter or scramble effects.
Column headers	Fade + rise 14px	420 ms	+220 ms	Left column first, 60ms stagger.
Hairlines	Wipe left to right	550 ms	+340 ms	The only thing that draws on.
Row values	Fade + rise 14px	420 ms	on VO	Label, then neutral value, then the red value last. Time each row to when Rob says it.
Number count-up	Optional roll from 0	≤ 600 ms	with value	Hero numbers only. Land on the final value before he says it.
Bars, grids, boxes	Grow from baseline	600 ms	on VO	Grid cells fill bottom-up, 15ms stagger per cell.
Exit	Whole card fades together	250 ms	—	Or hard cut on the edit. Never animate out piece by piece.
Hold	—	≥ 2 s	—	Minimum time on screen after the last element lands.

For the AI tool

Paste this at the top of every graphics prompt

Then describe the card's content. Attach one of the redrawn frames above as the style reference.

STYLE: Vision Miner data card, 1920x1080, animated. Full-frame background #141517 (near-black). Optional faint 96px grid lines at 2.5% white and a soft blue (#263F65, 22%) glow in the top-left corner. No floating card, no off-white or pink background, no drop shadow on the frame. LAYOUT: Everything left-aligned to x=96. Margins 96px top/left/right. Eyebrow at top 88, title directly below. If a picture-in-picture of the host is used: 420x525 at right 96, vertically centered, 16px corner radius, 1.5px white stroke at 14%, soft shadow. Content stays left of x=1336. Max 3 data rows. Rows separated by 1.5px hairlines at 12% white, 30px padding above and below each row. TYPE: Eyebrow Gotham Medium 22px, all caps, letter-spacing 0.22em, color #FF2800. Title Bebas Neue Pro Bold 104px, #F2F2F2. Column headers: brand in Gotham Medium 18px caps at 46% white, model in Gotham Bold 34px white. Row labels Gotham Book 26px at 66% white, no colons. Numbers Gotham Bold 76px with tabular figures; units at 42% of the number size with a space (43 hrs, 61.5 L). Notes Gotham Book 20px at 46% white, max two lines. COLOR RULE: Only ONE value per row is red #FF2800, the one for the product we're featuring (Fuse X1). All other values are light gray #D6D7D9. If both sides are identical, neither is red. "Not published" or missing data is 46% white, never red. MOTION: One ease-out curve (cubic-bezier 0.2,0.7,0.2,1). Elements fade in and rise 14px over 420ms: eyebrow, title +80ms, headers +220ms. Hairlines wipe left to right over 550ms. Each row's values appear when the host says them, red value last. Bars/grids grow from baseline over 600ms. Exit as one 250ms fade. No bounce, overshoot, scale pop, typewriter, glitch or motion blur. LOGO: Vision Miner horizontal URL lockup, 24px tall, bottom-left at x=96, 64px from bottom, on the top layer. VISION white + MINER.COM red on dark frames; VISION black + MINER.COM red on white frames.

Before export

Ten-second check

Title and all content share the x 96 left edge
One red value per row, on the subject column
No pink background, no corners over 16px
Units smaller than numbers, with a space
Rounding matches across each row
Labels are 1–3 words, no colons
Rows sit on hairlines, no 200px gaps
Logo bug fully visible on the top layer
Model names match across every card
Everything holds 2 s after the last element lands
